• P235/70R16 all-season OWL tires
• 16" painted cast aluminum wheels
• Black roof side rails
• Black molded-in-color cladding -inc: bumpers, wheel lips, door handles
• Chrome 3-bar grille w/nostrils
• Fog lamps
• Black fold-away pwr mirrors -inc: approach lamps
• Rear row privacy glass
• Intermittent windshield wipers
• Black molded-in-color door handles
• Cargo box w/(3) integrated storage compartments

• AM/FM stereo w/CD/MP3 player -inc: audio input jack
• SIRIUS satellite radio w/6-month subscription *N/A in Alaska or Hawaii*

• Cloth front low back bucket seats -inc: 4-way manual seats, manual driver lumbar, 2-way adjustable head restraints
• Cloth 60/40 split folding rear bench seat
• Floor console w/floor shifter -inc: cup holders, armrest, storage, (3) pwr points
• Rubber floor covering -inc: HD berber front/rear floor mats
• Color keyed 4-spoke leather-wrapped tilt steering wheel w/audio & cruise controls
• Message center
• Pwr windows w/1-touch driver down
• Pwr sliding rear window
• Pwr door locks -inc: 2-stage unlocking, autolock
• Manual air conditioning
• Illuminated glove box
• Overhead console
• Color keyed sun visors w/illuminated vanity mirrors
• (2) color keyed coat hooks
• Cargo area tie downs
• Cargo area pwr point

• AdvanceTrac w/Roll Stability Control (RSC)
• Driver & front passenger air bags
• Front passenger sensing system
• Side seat air bags
• Side curtain air bags w/rollover protection
• SOS Post Crash Alert System
• Height adjustable safety belts
• Belt-Minder
• Child safety rear door locks
• LATCH system for rear outboard seating positions
• Tire pressure monitoring system

4.0L SOHC 12-VALVE V6 ENGINE

• (STD)

• Cruise control with steering wheel mounted controls
• Control-Trac automatic full-time 4WD
• 4L V-6 regular unleaded
• engine with 210HP
• 4L V-6
• Mechanical
• SecuriLock immobilizer
• Trailer sway control
• AdvanceTrac(R) w/Roll Stability Control(R) electronic stability control system with anti-roll
• Front fog lights
• Leather steering wheel
• Manual rear child safety door locks
• Roof rails
• Manual tilting steering wheel
• 16 x 7-inch front and rear painted aluminum wheels
• P235/70SR16 AS OWL front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System(TM) curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• Auto-locking doors
• Power rear windshield
• 5-speed automatic
• Cloth rear seat upholstery
• Manual climate control
• 4 12V power outlets
• Exterior temperature display
• Transmission electronic control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto off headlight control
• Remote activated perimeter approach lighting
• Bucket front seats
• Driver seat with 4-way directional controls
• Manual driver seat lumbar
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Integrated pickup box storage
• Split-bench rear seat
• Fold forward rear seatback
• 60-40 folding rear seats
• Four-wheel drive
• Seating capacity: 5
• Trailer wiring harness

• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 7.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3240
• Gross Axle Wt Rating - Rear (lbs): 3340
• Curb Weight - Front (lbs): 2646
• Curb Weight - Rear (lbs): 2107
• Gross Vehicle Weight Rating Cap (lbs): 6160
• Gross Combined Wt Rating (lbs): 10000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 525
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Independent
• Spring Capacity - Front (lbs): 3140
• Spring Capacity - Rear (lbs): 3400
• Axle Type - Front: Twin-forged SLA
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3240
• Axle Capacity - Rear (lbs): 3600
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 34.9
• Shock Absorber Diameter - Rear (mm): 34.9
• Stabilizer Bar Diameter - Front (in): 1.34
• Stabilizer Bar Diameter - Rear (in): 0.77
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.97 x 0.43
• Rear Brake Rotor Diam x Thickness (in): 11.81 x 0.39
• Tires
• Front Tire Order Code: T53
• Rear Tire Order Code: T53
• Front Tire Size: P235/70R16
• Rear Tire Size: P235/70R16
• Spare Tire Size: P235/70R16
• Front Tire Capacity (lbs): 1700
• Rear Tire Capacity (lbs): 1700
• Spare Tire Capacity (lbs): 1700
• Revolutions/Mile @ 45 mph - Front: 721
• Revolutions/Mile @ 45 mph - Rear: 721
• Revolutions/Mile @ 45 mph - Spare: 721
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power Rack & Pinion
• Steering Ratio (:1), On Center: 18.9
• Turning Diameter - Curb to Curb (ft): 36.8
• Turning Diameter - Wall to Wall (ft): 38.4
• Frame
• Frame Type: Fully boxed ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22.5
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 130.5
• Length, Overall w/o rear bumper (in): 210.2
• Width, Max w/o mirrors (in): 73.7
• Height, Overall (in): 72.5
• Overhang, Front (in): 35.4
• Overhang, Rear w/o bumper (in): 44.3
• Front Bumper to Back of Cab (in): 145.0
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 30.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 8.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 49.6
• Cargo Box Width @ Top, Rear (in): 49.5
• Cargo Box Width @ Floor (in): 61.4
• Cargo Box Width @ Wheelhousings (in): 45.0
• Cargo Box (Area) Height (in): 21.2
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 37.5
• Ext'd Cab Cargo Volume (ft³): 44.4
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.8
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 59.0
• Front Hip Room (in): 55.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 36.9
• Second Shoulder Room (in): 58.9
• Second Hip Room (in): 55.5
• Summary

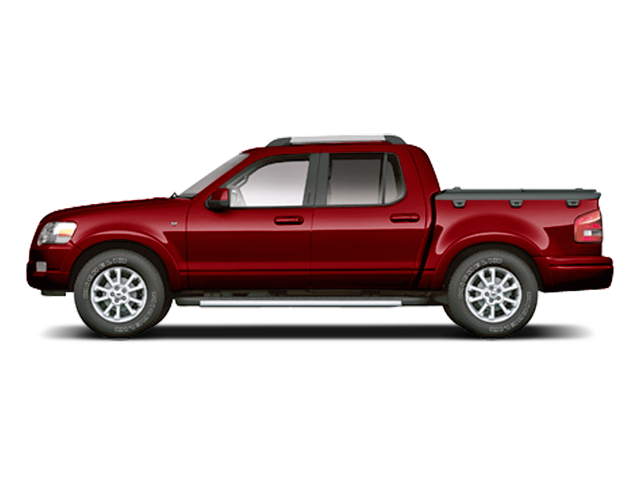

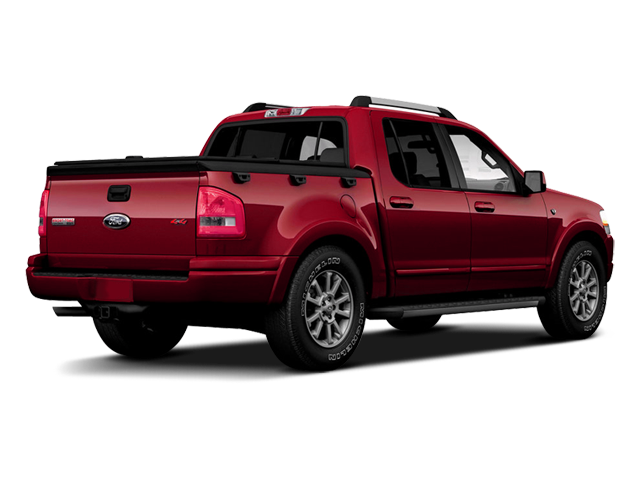

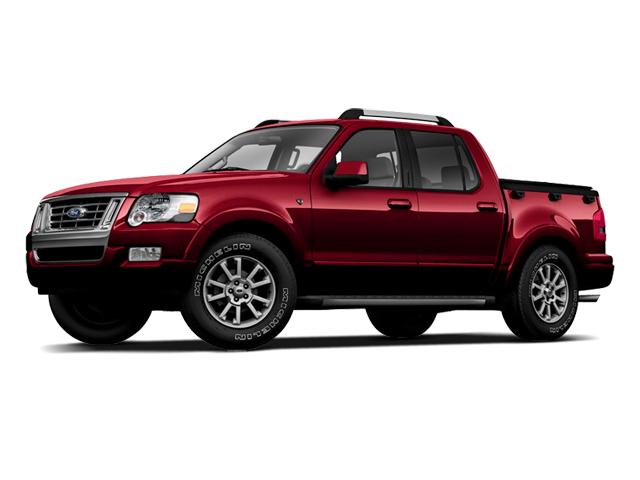

• Vehicle Name: Ford Explorer Sport Trac
• Body Style: 4 Door
• Body Code: 131" WB
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
